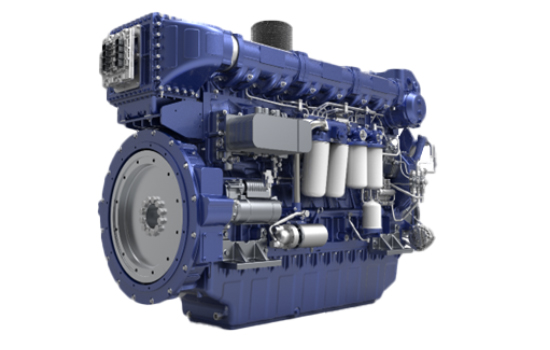

Weichai 6WH17C1000-5 engine delivers stable power for marine vessels.
| Model | WEICHAI 6WH17C1000-5 |
| Type | Four-stroke,water cooled,in-line,turbocharged and aftercooled |
| Bore&Stroke | 170*222(mm) |
| Oil consumption rate | <=0.3g/kW/h |
| Minimum fuel consumption rate | 190g/kW/h |
| Rotation(facing the flywheel) | Counter-colockwise |
| Dimensions(L*W*H) | L6:2463*1200*1650mm/ L8:2650*1040*1818mm |
| Number of cylinders | 6 |
| Displacement | 30.22L |
| Noise | <=111dB(A) |
| Idle speed | 500r/min |
| Net weight | L6:3100/L8:3800kg |
| Aspiration | TA |
| Rated power(kW/Ps) | 735/1000 |
| Speed r/min | 1500 |
| Fuel system | HPCR |
| Emission | IMO II |
| Power rating | P1 |
